Making some electrodes to test.

I needed something to use to build the ECG capture system.

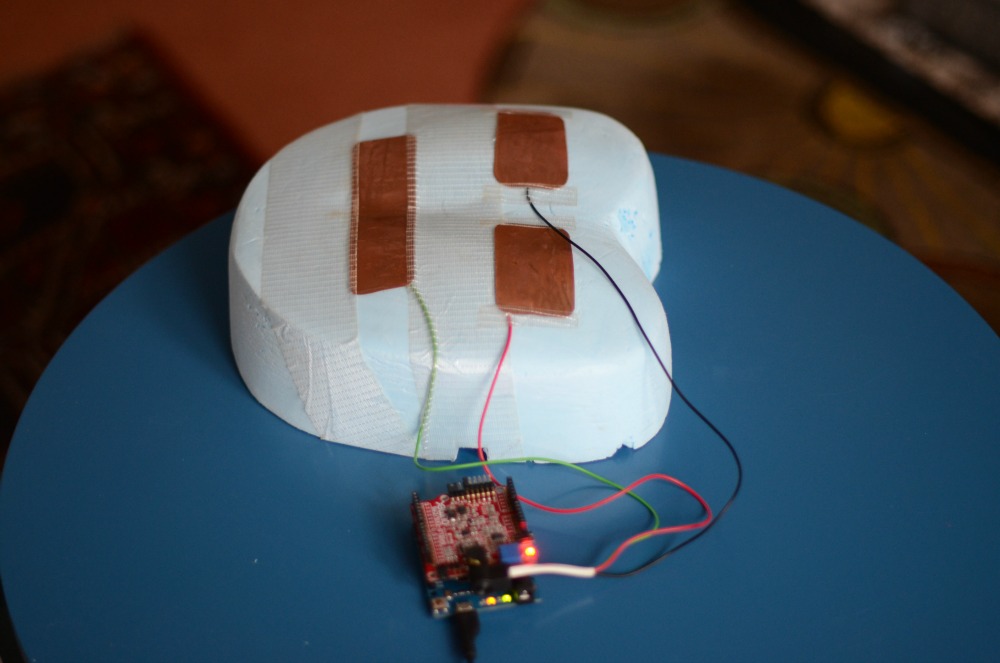

Using some copper sheet and "blue foamy stuff" I made a simple rig to experiment with electrode placement.  The electronics in this version comprise an ECG shield and an arduino (Leonardo)

ECG tester mark1

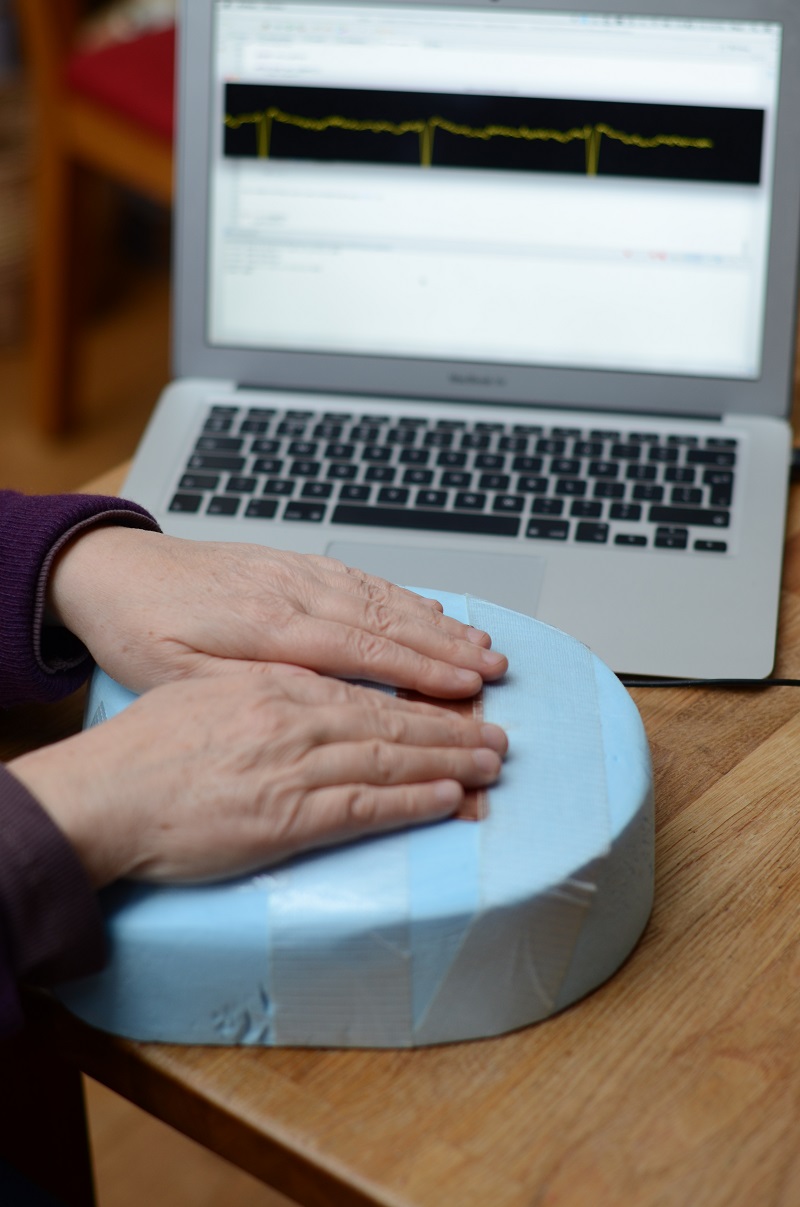

Checking it is working.
